Portable Ground Control Station T26 is built on Panasonic's FZ-M1, a professional and military-grade tablet that meets MIL-STD-810G and IP65 dust and water resistance technology.
Featuring an all-in-one video, telemetry, and RC link, the T26 includes 2 joysticks, 2 pull wheels, and 10 buttons. The user can assign 16 physical channels to joysticks, switches, and buttons.
The built-in large-capacity battery allows it to work for up to 9 hours continuously. This makes it very convenient to operate on the field.
The rugged, water and dust-proof design, is especially suitable for operation in a harsh environment.
Performance upgrade
- Windows system
- Built on Panasonic FZ-M1, IP65 grading,
- Aviation grade aluminum shell, the overall weight only 1.5kg
- Touch screens, high definition, high brightness, sunlight-readable
- 16 physical channels, the user can assign each channel to a preferred joystick, switch, and button
- IP65 rating
Perfect remote control experience
- Double hall rocker
- Double round rocker
- Light alloy buttons
Long battery working time
- Battery capacity is 3220mAh+6800mAh
- Remote control about 9 h
- The web browsing, about 12 h
Modeling design
- Aviation aluminum alloy shell, rugged and lightweight
- The overall weight is only 1.5 kg
- Around with soft rubber, skid resistance
Parameters
Overall
Overall weight: 1.5kg
Dimension: 30cm*15.8cm*4cm
Operation temperature: -20℃-+60℃
Battery capacity: Built-in 7.4V/3220mAh(RC)& 8.4V/6800mAh (computer)
Endurance: 9hs
IP rating: IP65
Communication system: V21(10km grade)
Antennas: 2-4dB ZYJB antenna
Computer
Computer: Panasonic FZ-M1(Processor: Intel i5 7Y57)
Display screen: 7inch industrial touch screen+800nits sunlight readable+definition 1280*800
Operating system: Win10
CPU: Intel i5 7Y57
Memory: 8G
Storage: 256GB SSD
Network: WIFI/Bluetooth/4G
Remote control system
Physical channel: 16
Joysticks: 2
Pull wheel: 2
buttons: F1-F10
(Each channel programmable, the user can self-define each joystick, switch, button, etc)
Remote control latency: 40ms
Remote control function: Dual SBUS independent output, able to control the vehicle and the payload simultaneously
Human interface: USB HID device
Interfaces
External interface: USB3.0*2
|
|

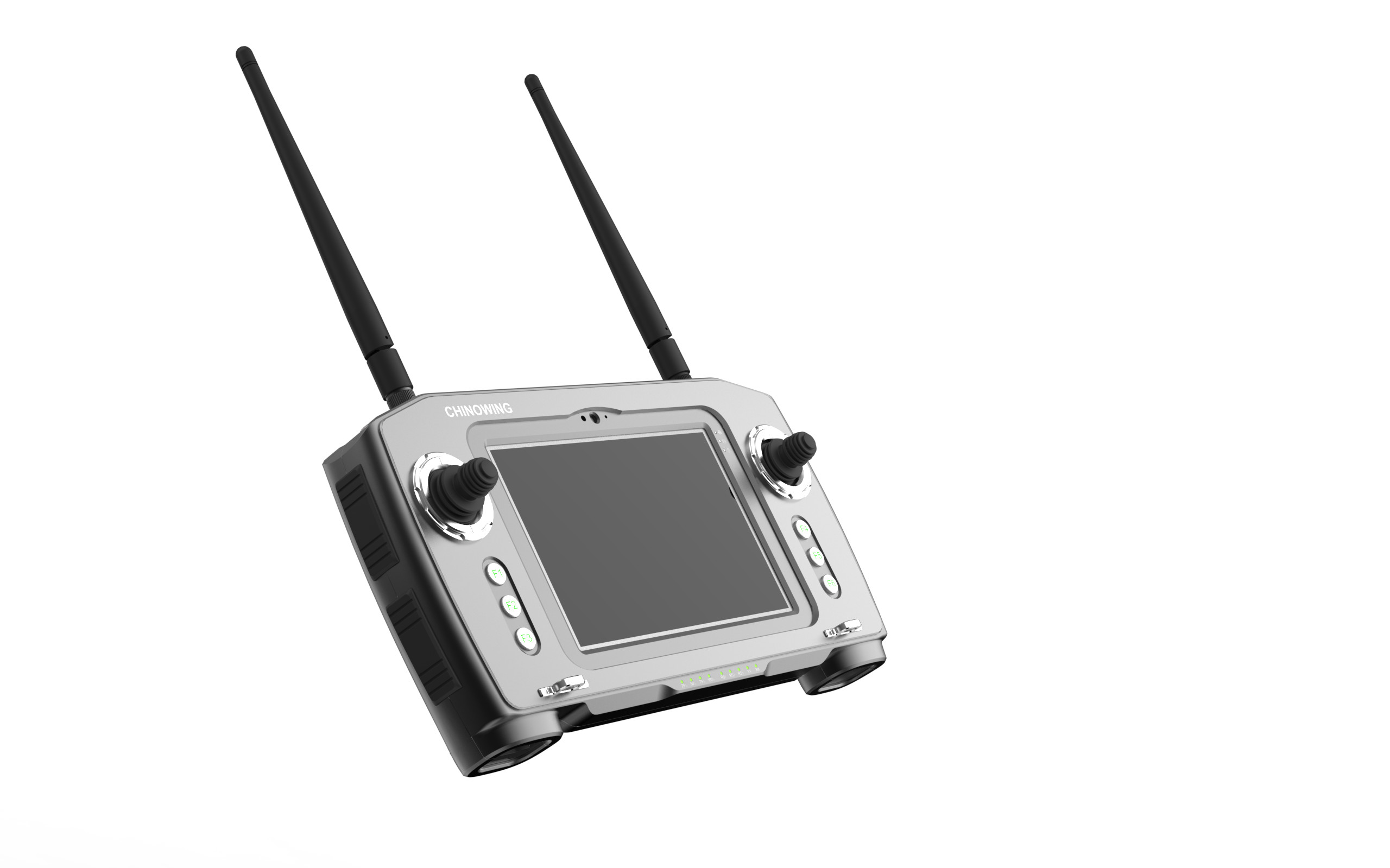

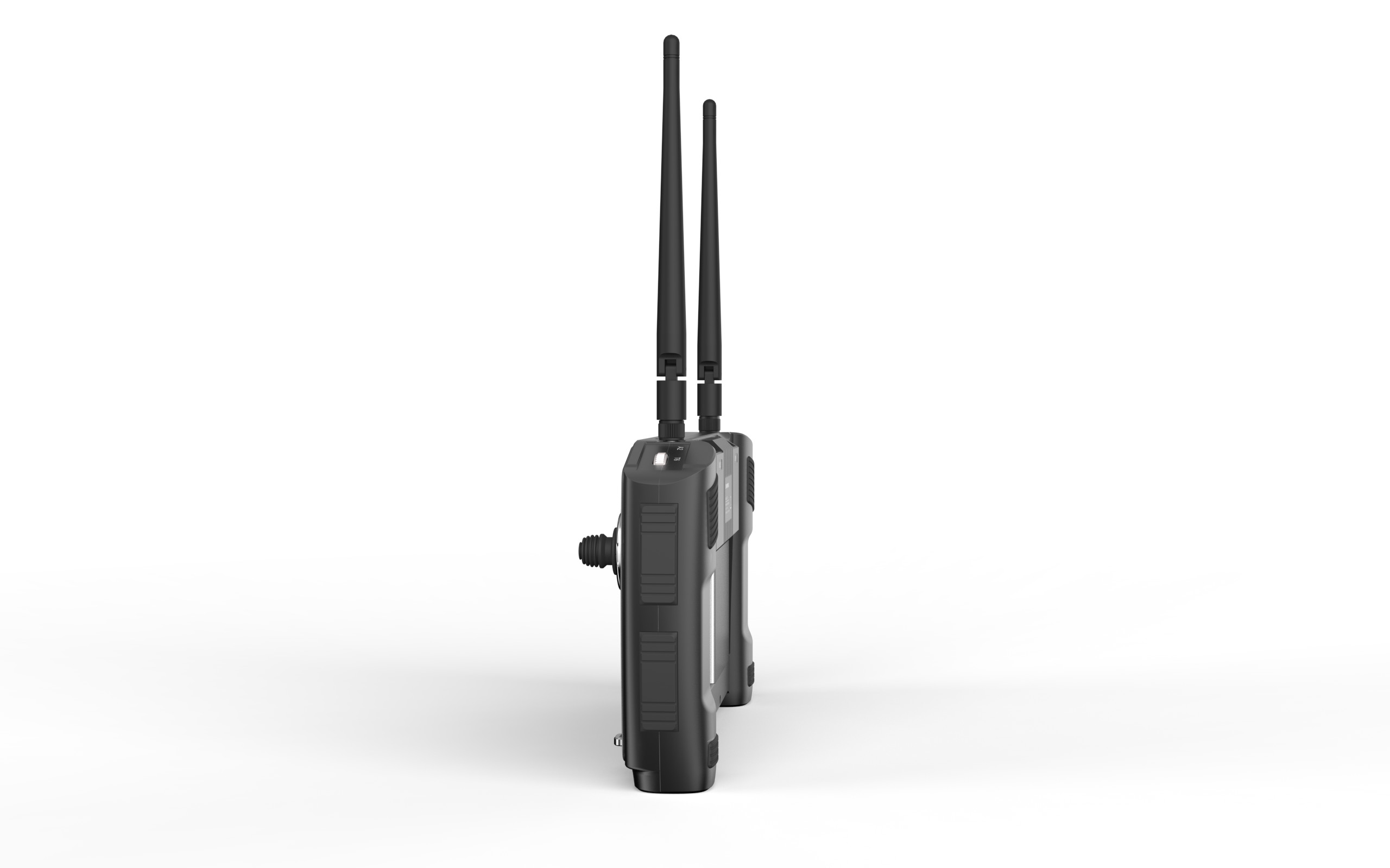

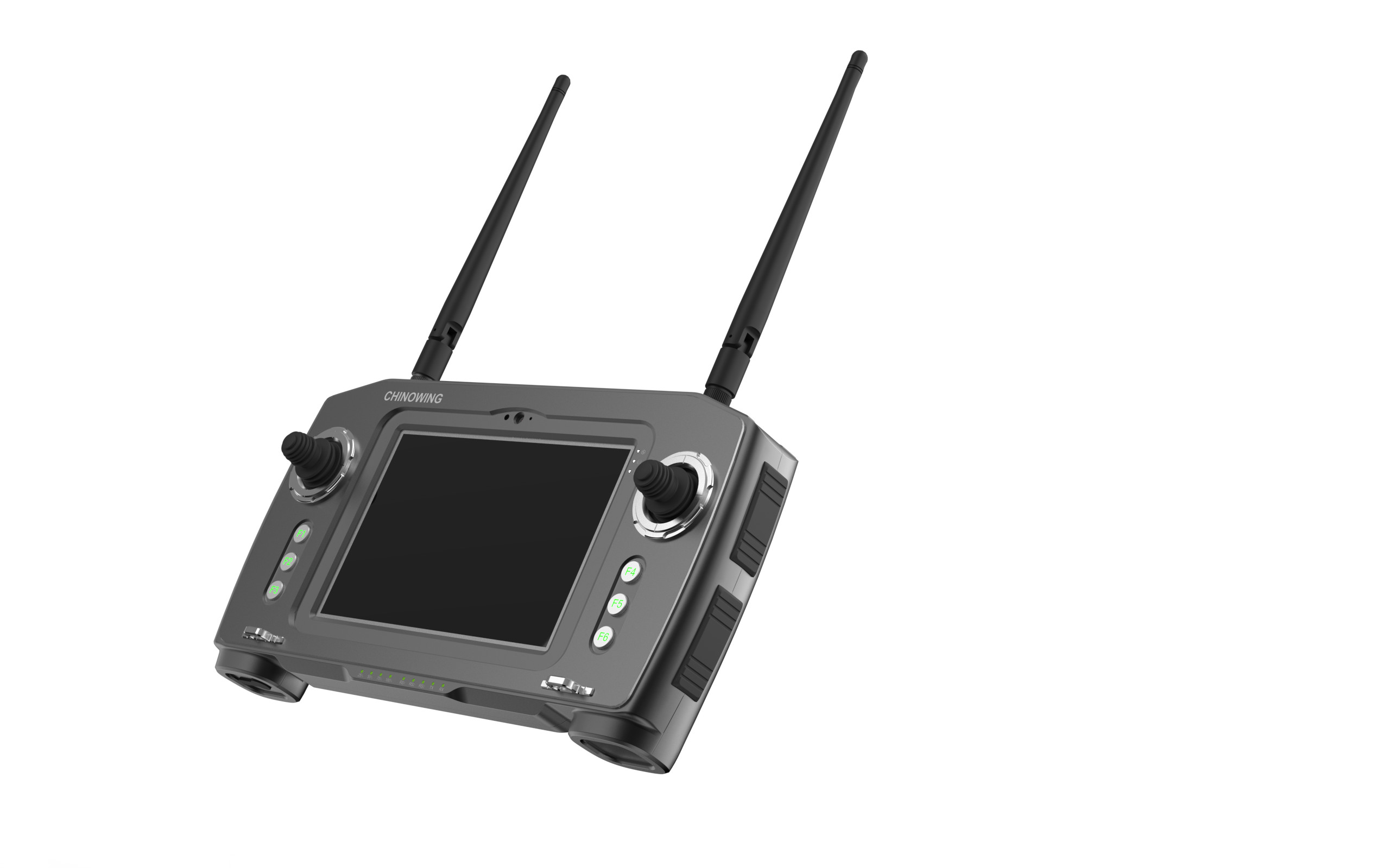

T26 Rugged Single Screen Ground Control Station With All-In-One Video&Telemetry&RC Link For Demanding Environments Images
|
